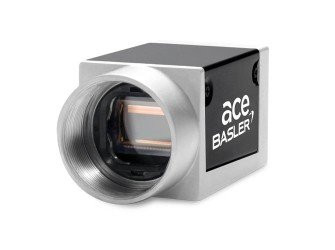

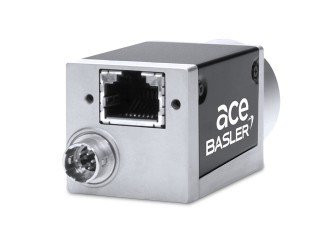

acA1300-60gm - Basler ace
The Basler acA1300-60gm GigE camera with the e2v EV76C560 CMOS sensor delivers 60 frames per second at 1.3 MP resolution.
General Information |
||
|---|---|---|
| Order Number | 106200 | |
| Product Line | ace Classic | |
| Price | For pricing, please use the request cart to get a quote. | |
| Shipment | For information about shipping please use the request cart. | |
Sensor |
||
|---|---|---|
| Sensor Vendor | e2v | |
| Sensor | EV76C560 | |
| Shutter | Global & Rolling Shutter | |
| Max. Image Circle | 1/1.8" | |
| Sensor Type | CMOS | |
| Sensor Size | 6.8 mm x 5.4 mm | |
| Resolution (HxV) | 1282 px x 1026 px | |
| Resolution | 1.3 MP | |
| Pixel Size (H x V) | 5.3 µm x 5.3 µm | |
| Frame Rate | 60 fps | |
| Mono/Color | Mono | |
EMVA Data |
||
|---|---|---|
| EMVA Quantum Efficiency (typical) | 54.0 % | |
| Dark Noise (typical) | 24.7 e¯ | |
| Saturation Capacity (typical) | 9.5 ke¯ | |
| Dynamic Range (typical) | 51.7 dB | |
| Signal-to-Noise Ratio (typical) | 39.8 dB | |
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 12 bits | |
| Synchronization |
|
|
| Exposure Control |
|
|
| Digital Input | 1 | |
| Digital Output | 1 | |
| Power Supply |
|
|
| Power Requirements (typical) | 2 W | |
| Power Consumption PoE | 2.6 W | |
Housing |
||
|---|---|---|
| Housing Type | Box | |
| Housing Size (L x W x H) | 42 mm x 29 mm x 29 mm | |
| Lens Mount |
|
|
| Operating Temperature | 0 - 50°C | |
| Weight (typical) | 90g | |
Conformity |
||
|---|---|---|
| Conformity |
|
|
