| Mechanical |
| Format |

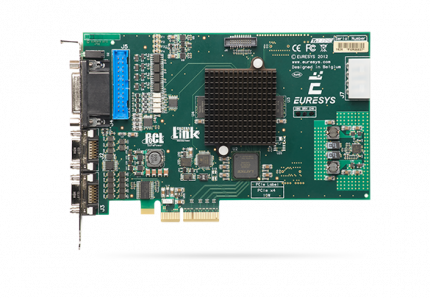

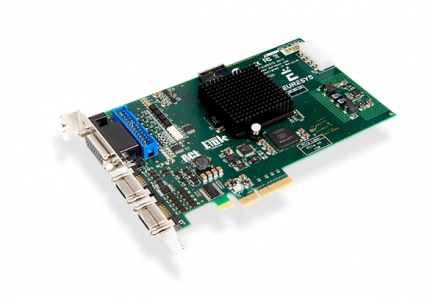

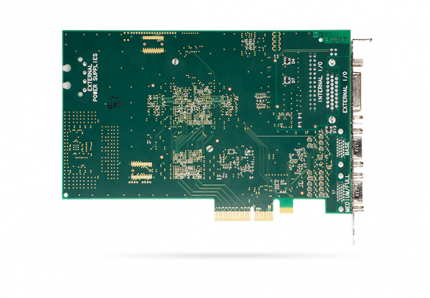

Standard profile, half length, 4-lane PCI Express card |
| Cooling method |
Air-cooling, fanless |
| Mounting |
For insertion in a standard height, 4-lane or higher, PCI Express card slot |

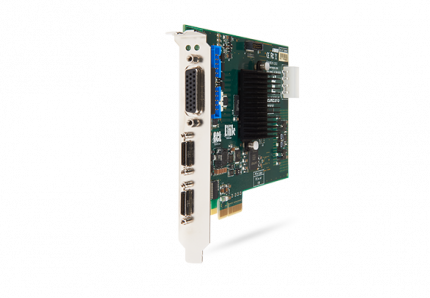

| Connectors |
- 'BASE' on bracket:
- 26-position Shrunk Delta Ribbon (SDR) socket
- Camera Link Base connector
- 'MEDIUM/FULL'
- 26-position Shrunk Delta Ribbon (SDR) socket
- Camera Link Medium/Full/80-bit connector
- 'EXTERNAL I/O' on bracket:
- 26-pin 3-row high-density female sub-D connector
- I/O lines and power output
- 'INTERNAL I/O' on PCB:
- 26-pin 2-row 0.1" pitch pin header with shrouding
- I/O lines and power output
- 'POWER INPUT' on module:
- 4-pin MOLEX power socket
- 12 VDC power input for PoCL camera and I/O power
|
| Dimensions |
L 167.65 mm x H 111.15 mm L 6.6 in x H 4.38 in |
| Weight |
136 g, 4.80 oz |
| Host bus |
| Standard |
PCI Express 1.0 |
| Link width |
4 lanes |
| Link speed |
2.5 GT/s (PCIe 1.0) |
| Maximum payload size |
1024 bytes |
| DMA |
32- and 64-bit |
| Peak delivery bandwidth |
1,024 MB/s |
| Effective (sustained) delivery bandwidth |
- Up to 833 MB/s for a PCI Express payload size of 256 bytes and 64-bit addressing
- Up to 844 MB/s for a PCI Express payload size of 256 bytes and 32-bit addressing
- Up to 754 MB/s for a PCI Express payload size of 128 bytes and 64-bit addressing
- Up to 780 MB/s for a PCI Express payload size of 128 bytes and 32-bit addressing
|
| Power consumption |
Max. 9.9 W; Typ. 8.2 W (1.0 A @ 3.3V;0.41 A @+12V) |
| Camera / video inputs |
| Interface standard(s) |
Camera Link 2.0 |
| Connectors |
Two Shrunk Delta Ribbon (SDR) Miniature Camera Link (MiniCL) |
| ECCO - Extended Camera Link Cable Operation |
ECCO+ |
| Number of cameras |
One 80-bit / 72-bit / Full / Medium / Base configuration camera |
| Maximum aggregated camera data transfer rate |
6.8 Gbit/s (850 MB/s) |
| Camera Link configuration |
Base, Medium, Full, 72-bit, 80-bit Note: Unpacking to 16-bit and image reconstruction are not available for the 8x 10-bit variant of the 80-bit configuration. |
| Camera Link clock frequency |
From 20 MHz up to 85 MHz |
| PoCL (Power over Camera Link) |
Two independent PoCL SafePower compliant controllers with overload, over-voltage and short-circuit protection |
| Camera types |
- Grayscale and color (RGB and Bayer) cameras
- Area-scan and line-scan cameras
|
| Camera pixel formats supported |
Monochrome, Bayer, and RGB (PFNC names):
- Mono8, Mono10, Mono12, Mono14, Mono16
- BayerXX8, BayerXX10, BayerXX12, BayerXX14, BayerXX16 where XX = GR, RG, GB, or BG
- RGB8, RGB10, RGB12, RGB14, RGB16
|
| Area-scan camera control |
| Trigger |
- Precise control of asynchronous reset cameras, with exposure control.
- Support of camera exposure/readout overlap.
- Support of external hardware trigger, with optional delay and trigger decimation.
|
| Strobe |
- Accurate control of the strobe position for strobed light sources.
- Support of early and late strobe pulses.
|
| Line-scan camera control |
| Scan/page trigger |
- Precise control of start-of-scan and end-of-scan triggers.
- Support of external hardware trigger, with optional delay.
- Support of infinite acquisition, without missing line, for web inspection applications.
|
| Line trigger |
- Support for quadrature motion encoders, with programmable noise filters, selection of acquisition direction and backward motion compensation.
- Rate Converter tool for fine control of the pixel aspect ratio.
- Rate Divider tool
|
| Line strobe |
- Accurate control of the strobe position for strobed light sources.
|
| On-board processing |
| On-board memory |
128 MB (64 MB for image data) |
| Image data stream processing |
- Unpacking of 10-/12-/14-bit to 16-bit with selectable justification to LSb or MSb
|
| Input LUT (Lookup Table) |
- Monochrome: 8-bit, 10-bit or 12-bit per pixel, up to 1000 MPixel/s
- RGB: 3x8-bit, 3x10-bit or 3x12-bit per pixel, up to 250 MPixel/s
|
| Bayer CFA to RGB decoder |
- Advanced interpolation method using average and median functions on a 3x3 kernel
- Up to 225 MPixel/s
|
| General Purpose Inputs and Outputs |
| Number of lines |
10 I/O lines:
- 2 differential inputs (DIN)
- 4 isolated inputs (IIN)
- 4 isolated outputs (IOUT)
|
| Usage |
- The input lines can be used by the acquisition channel as:
- Camera frame trigger source (area-scan only)
- Acquisition sequence trigger source (area-scan only)
- Camera line trigger source (line-scan only)
- Page acquisition trigger source (line-scan only)
- Page acquisition end trigger source (line-scan only)
- (Quadrature) motion encoder input (line-scan only)
- The IOUT 1 output line can be used by the acquisition channel as:
- Illumination strobe output
- All the input lines can be used as general purpose inputs
- All the output lines can be used as general purpose outputs
|
| Electrical specifications |
- DIN: High-speed differential inputs compatible with ANSI/EIA/TIA-422/485 differential line drivers and complementary TTL drivers
- IIN: Isolated current-sense inputs with wide voltage input range up to 30V, compatible with totem-pole LVTTL, TTL, 5V CMOS drivers, RS-422 differential line drivers, potential free contacts, solid-state relays and opto-couplers
- IOUT: Isolated contact outputs compatible with 30V / 100mA loads
|
| Filter control |
- Glitch removal filter available only on input lines used as trigger sources
- Configurable with five time constants:
- 100 ns, 500 ns, and 2.5 µs for trigger / page trigger / page end trigger sources
- 40 ns, 100 ns, 200 ns, 500 ns, 1 µs, 5 µs, 10 µs for line trigger sources
|
| Power output |
Non-isolated, +5V, 1A and +12V, 1A, with electronic fuse protection |
| Software |
| Host PC Operating System |
- Microsoft Windows 10, 8.1, 7 for x86 (32-bit) and x86-64 (64-bit) processor architectures
- Linux for x86 (32-bit) and x86-64 (64-bit) processor architectures
Refer to release notes for details |
| APIs |
- MultiCam 32- and 64-bit binary libraries (Windows and Linux), for ISO-compliant C/C++ compilers
|
| Environmental conditions |
| Operating ambient air temperature |
0 to +50 °C / +32 to +122 °F |
| Operating ambient air humidity |
10 to 90% RH non-condensing |
| Storage ambient air temperature |
-20 to +70 °C/ -4 to +158 °F |
| Storage ambient air humidity |
10% to 90% RH non-condensing |
| Certifications |
| Electromagnetic - EMC standards |
- European Council EMC Directive 2004/108/EC
- United States FCC rule 47 CFR 15
|
| EMC - Emission |
- EN 55022:2010 Class B
- FCC 47 Part 15 Class B
|
| EMC - Immunity |
- EN 55024:2010 Class B
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
|
| KC Certification |
Korean Radio Waves Act, Article 58-2, Clause 3 |
| Flammability |
PCB compliant with UL 94 V-0 |
| RoHS |
European Union Directive 2015/863 (ROHS3) |
| REACH |
European Union Regulation 1907/2006 |
| WEEE |
Must be disposed of separately from normal household waste and must be recycled according to local regulations |
