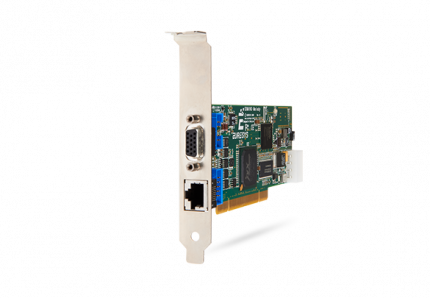

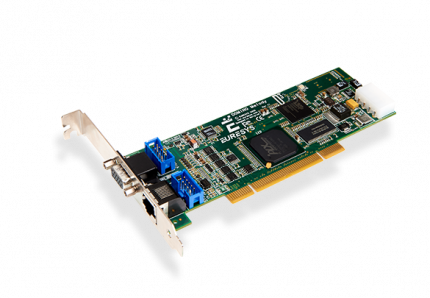

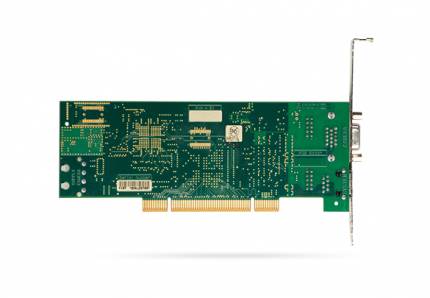

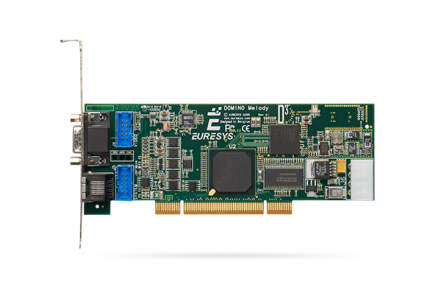

Domino Melody

Low-profile frame grabber for one single-tap non-standard analog camera

       AT A GLANCE

  • One 10-bit 40 MHz A/D converter with one 8- or 10-bit LUT
  • 32-bit 33 MHz PCI bus, standard and low profile brackets
  • D³ technology for extremely low synchronization jitter
  • Support for mega-pixel progressive-scan and interlaced cameras, asynchronous reset and exposure control
  • Trigger, strobe and general purpose I/O lines
Mechanical
Format Low profile, half-length, 32-bit Conventional PCI card
Dimensions L 168 mm x H 64 mm L 6.6 in x H 2.21 in
Host bus
Standard PCI 32-bit, 33 MHz, 3.3 V and 5 V signaling
DMA 32-bit
Peak delivery bandwidth 132 MB/s
Effective (sustained) delivery bandwidth 90 MB/s (Host PC motherboard dependent)
Power consumption Max. 6.8 W (1.45 A @ +3.3V, 400 mA @ +5V), excluding I/O power output
Camera / video inputs
Interface standard(s) Non-standard Analog
Connectors
  • CAMERA: high-density sub-D 15-pin male connector on the bracket
  • Camera internal: 10-pin shrouded header video connector on the PCB
Termination resistor Selectable by software
Number of cameras One single-tap camera
Number of cameras (at full frame rate) 1
A/D converter One, 10-bit, 40 MHz
Maximum camera line rate
  • 49.5 kHz in synchronous mode
  • 31.5 kHz in asynchronous reset mode
On-board processing
On-board memory 16 MB (8 MB for image data)
Input LUT (Lookup Table) 1 x 8- or 10-bit LUT
General Purpose Inputs and Outputs
Number of lines 4 I/O lines:
  • 1 differential input (TR)
  • 1 opto-isolated output (ST)
  • 2 TTL inputs/outputs (ENHANCED IO)
Connectors
  • SYSTEM: 8-pin RJ-45 connector on the bracket
  • SYSTEM INTERNAL: 10-pin dual-row 0.1" shrouded header on the PCB
  • CAMERA POWER: 4-pin Molex connector on the PCB for camera powering
Usage
  • Camera and image acquisition trigger
  • Light strobe trigger
  • General purpose IO
Electrical specifications
  • TR: Inputs compatible with TTL, LVTTL, differential LVDS, differential RS-422, differential RS-485 signals, protected against electrostatic discharge, with choke for the rejection of common-mode noise
  • ST: Opto-isolated outputs, compatible with signals up to 60V, with 3 µs fall time, isolated up to 500V
  • ENHANCED IO Inputs or outputs compatible with TTL signals, protected against electrostatic discharge, with high-frequency noise filter
Software
Host PC Operating System
  • Microsoft Windows 10, 8.1, 7 for x86 (32-bit) and x86-64 (64-bit) processor architectures
  • Linux for x86 (32-bit) and x86-64 (64-bit) processor architectures
Refer to release notes for details
APIs
  • MultiCam 32- and 64-bit binary libraries (Windows and Linux), for ISO-compliant C/C++ compilers
Environmental conditions
Operating ambient air temperature 0 to +50 °C / +32 to +122 °F
Operating ambient air humidity 10 to 90% RH non-condensing
Storage ambient air temperature -20 to +70 °C/ -4 to +158 °F
Storage ambient air humidity 10% to 90% RH non-condensing
Certifications
Electromagnetic - EMC standards
  • European Council EMC Directive 2004/108/EC
  • United States FCC rule 47 CFR 15
EMC - Emission
  • EN 55022:2010 Class B
  • FCC 47 Part 15 Class B
EMC - Immunity
  • EN 55024:2010 Class B
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
KC Certification Korean Radio Waves Act, Article 58-2, Clause 3
Flammability PCB compliant with UL 94 V-0
RoHS European Union Directive 2015/863 (ROHS3)
REACH European Union Regulation 1907/2006
WEEE Must be disposed of separately from normal household waste and must be recycled according to local regulations
Ordering Information
Product code - Description
