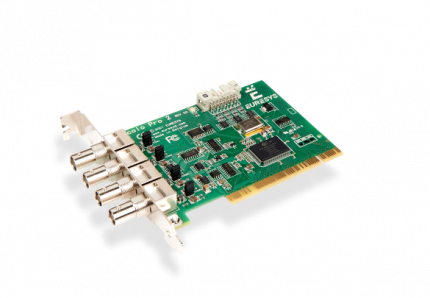

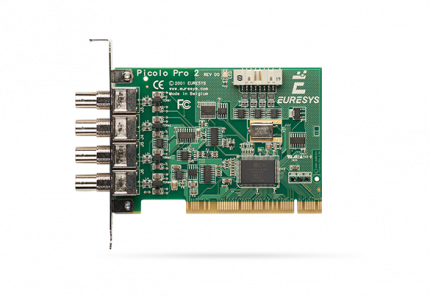

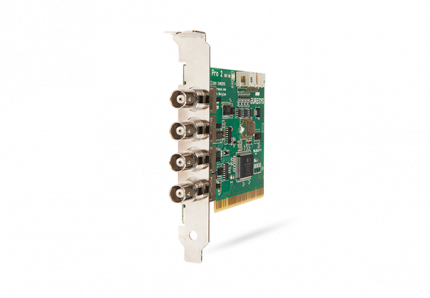

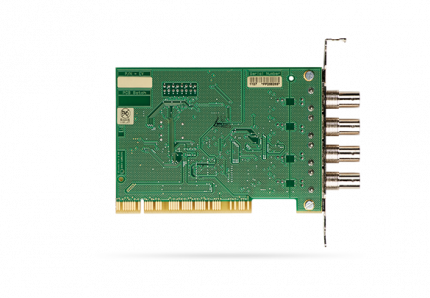

Picolo Pro 2
PCI video capture card with four BNC connectors for standard PAL/NTSC cameras
AT A GLANCE
- 4x BNC connectors on the bracket
- 32-bit 33 MHz PCI bus
- One video decoder, 25/30 images per second (50/60 fields per second)
- Fast switching between up to 4 cameras
- PCI and PCIe versions available
| Mechanical | |
| Format | Standard profile, half-length, 32-bit Conventional PCI card |
| Dimensions | L 119.91 mm x H 84.83 mm |
| Host bus | |
| Standard | PCI 32-bit, 33 MHz |
| DMA | 32-bit |
| Power consumption | Max. 1.7 W (240 mA @ +5V, 10 mA @ +12V, 30 mA @ -12V) |
| Camera / video inputs | |
| Interface standard(s) | NTSC-M, PAL-B/G, RS-170, CCIR |
| Connectors |
|
| Termination resistor | Selectable using jumpers on the PCB |
| Native resolution | Square pixels, broadcast and custom resolutions |
| Frame rate | Up to 25/30 images per second, 50/60 fields per second |
| Number of cameras | 4 |
| Number of cameras (at full frame rate) | 1 |
| Video delivery | |
| Raw video format(s) | Planar, packed, YUV and RGB color formats |
| Deliverable video resolution (SD) | Frame, field, CIF, QCIF and custom image formats |
| General Purpose Inputs and Outputs | |
| Number of lines | 13 I/O lines (IO) |
| Connectors | DIGITAL I/O: 16-pin two-row 0.1" shrouded header on the PCB |
| Usage | General purpose IO |
| Electrical specifications | IO: TTL-compatible I/O lines |
| Software | |
| Host PC Operating System |
|
| APIs |
|
| Environmental conditions | |
| Operating ambient air temperature | 0 to +50 °C / +32 to +122 °F |
| Operating ambient air humidity | 10 to 90% RH non-condensing |
| Storage ambient air temperature | -20 to +70 °C/ -4 to +158 °F |
| Storage ambient air humidity | 10% to 90% RH non-condensing |
| Certifications | |
| Electromagnetic - EMC standards |
|
| EMC - Emission |
|
| EMC - Immunity |
|
| KC Certification | Korean Radio Waves Act, Article 58-2, Clause 3 |
| Flammability | PCB compliant with UL 94 V-0 |
| RoHS | European Union Directive 2015/863 (ROHS3) |
| REACH | European Union Regulation 1907/2006 |
| WEEE | Must be disposed of separately from normal household waste and must be recycled according to local regulations |
| Ordering Information | |
| Product code - Description | |
