EasyGauge

Sub-pixel measurement & dimension control library



       AT A GLANCE

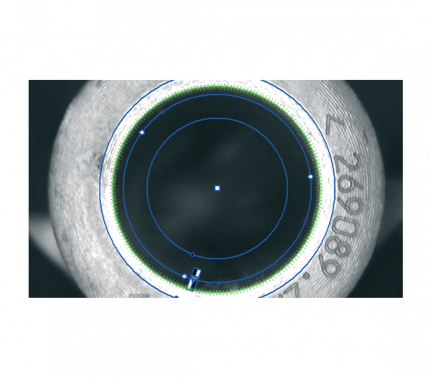

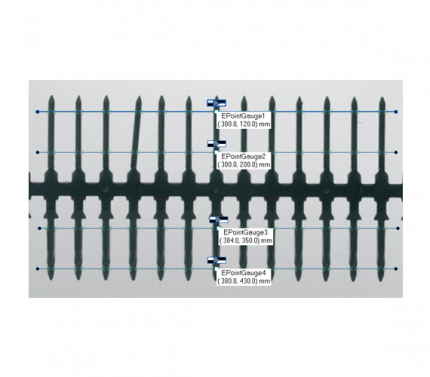

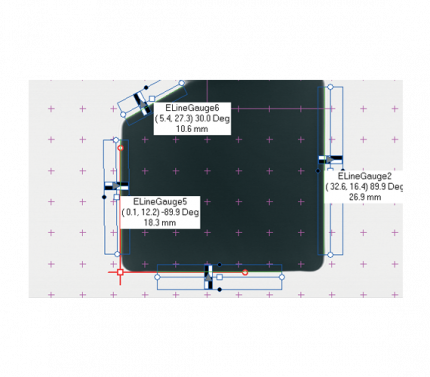

  • Sub-pixel point location and edge fitting
  • Highly accurate and robust
  • Advanced and automatic calibration
  • Multiple gauge models
  • Measurement of position, orientation, size, curvature, distance
  • Interaction through graphical interface
Software
Host PC Operating System
  • Open eVision is a set of 32-bit and 64-bit libraries that require a processor compatible with the SSE2 instruction set.
  • Deep Learning Bundle is only available in the 64-bit Open eVision library.
  • Open eVision can be used on the following operating systems:
    • Windows 10 (32- and 64-bits)
    • Windows 8 (32- and 64-bits)
    • Windows 7 (32- and 64-bits)
  • Since Open eVision 2.6, discontinued support of:
    • Windows Vista 32-bits Service Pack 1
    • Windows XP 32-bits Service Pack 3
    • Windows Embedded Standard 2009 32-bits
  • The Open eVision installer does not allow installation on virtual machines.
  • Minimum requirements:
    • RAM: 8 GB
    • Display size: 800 x 600. 1280 x 1024 recommended.
    • Color depth: 16 bits. 32 bits recommended.
    • Between 100 MB and 2 GB free hard disk space for libraries, depending on selected options.
APIs
  • Supported Integrated Development Environments and Programming Languages:
    • Microsoft Visual Studio 2008® SP1 (C++, C#, VB .NET, C++/CLI)
    • Microsoft Visual Studio 2010® (C++, C#, VB .NET, C++/CLI)
    • Microsoft Visual Studio 2012® (C++, C#, VB .NET, C++/CLI)
    • Microsoft Visual Studio 2013® (C++, C#, VB .NET, C++/CLI)
    • Microsoft Visual Studio 2015® (C++, C#, VB .NET, C++/CLI)
    • Microsoft Visual Studio 2017® (C++, C#, VB .NET, C++/CLI)
  • Since Open eVision 2.5.1, discontinued support of:
    • Borland C++ Builder 6.0 update 4 (C++)
    • CodeGear Delphi 2009 (Object Pascal)
    • CodeGear C++ Builder 2009 (C++)
    • Microsoft Visual Studio 6.0 SP6 (C++, Basic)
    • ActiveX API
  • Since Open eVision 2.4.1, discontinued support of:
    • Embarcadero RAD Studio XE4 and XE5 (C++, Object Pascal, 32 bits only)
Ordering Information
Product code - Description
Optional accessories
